Path Edit
Path edit can add, delete or move nodes of the path , set the starting point of path, the bridge, arc fit, and feed setting, reverse the path direction.
Command:
Menu【Path > Path Edit】

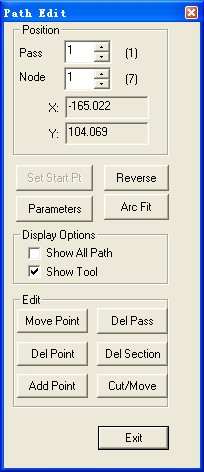

Parameters:
Pass: You can select the different parts of the path by adjusting pass serial number.
Node: You can select the different nodes of the path by changing node serial number.
Set start Pt: You can set any point as the starting point of the path.
Reverse: To reverse the direction of the path.
Arc Fit: The path expressed as lines changed to arcs.
Show All Path: Check it, and you can see all path.
Show Tool: The tool is displayed after you check it.
Move point: You can move a node to a new position or change the shape of the path by changing the coordinates of the path.
Add point: You can add nodes in a certain position of the path.
Del point: You can delete any node on the path.
Del Pass: To delete the current pass of path.
Del section:To delete a section unit path curve, thereby changing the shape of the path.
Cut/Move: Change cutting path as fast moving to realize the common edge cut.
