Dimension Style
Command:
【Parametric > Dimension Style】

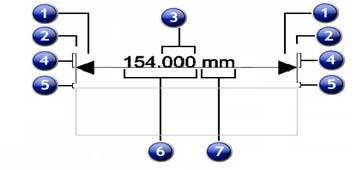

1. Arrow 2. Lead 3. Trailing Zeros 4. lead extend
5. lead Offset 6. Dimension Value 7.Unit
The dimension style can be modify in Dimension Style.
