Fillet
Command:
MenuNode > Fillet Node Editing Bar

Steps:
1. Select a node.
2. Click Menu【Node > Fillet】.

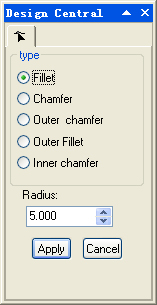

3. Select the type.
4. Set the radius.
5. Click Apply button.
Note: This function is only valid when editing acute angles.
