Wavy line

Creates a wavy line.

Various types of wavy lines: Sinusoids, Swing Curves, Wavy Lines, Trapezium Polylines, and Wave Polylines.


       Command:

       Menu【Draw >Wavy line】              Curve Bar                   Shortcut: W






Steps:

1.Select the type of wavy lines.

2.Pick the start of line.

3.Pick the end of line.

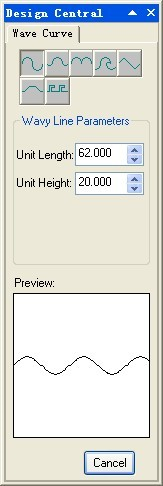

       Parameters:

Unit length: is the length of each wave

Unit height: is the vertical distance between the wave top and the wave bottom.

Top length: is the length of the wave top

Top height: is the height of the wave top
