Arc

       Creates an arc.


       Command:

       Menu Draw > Arc > 3 Points】                     Curve Bar               Shortcut: A

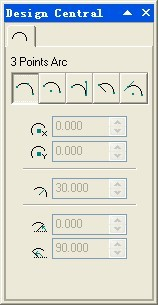

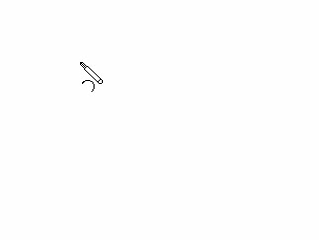

 Points



Steps:

1.Pick the first point of the arc.

2.Pick the second point of the arc.

3.Pick the third point of the arc.


Center, Start, End




Steps:

1.Pick the center of the arc.

2.Pick the start point of the arc.

3.Pick the end point of the arc.

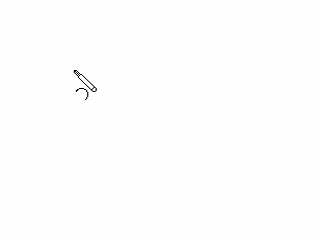

Start, End, Direction



Steps:

1.Pick the start point of the arc.

2.Pick the end point of the arc.

3.Pick the direction of the arc.

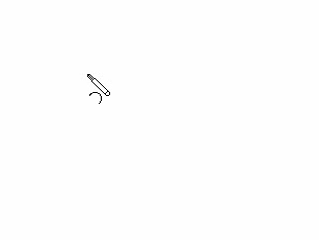

Start, End, Radius


Steps:

1.Pick the start point of the arc.

2.Pick the end point of the arc.

3.Type the radius of the arc.

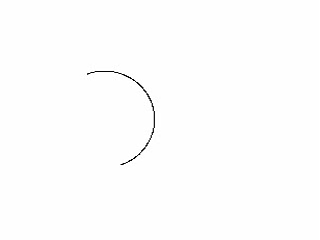

Tangential Arc



Steps:

1.Pick the tangent point.

2.Type the radius of the arc

3.Type the angle of the arc
