Creates a rectangle.


Command:

MenuDraw >Rectangle >Rectangle】                   Curve Bar                     Shortcut: R

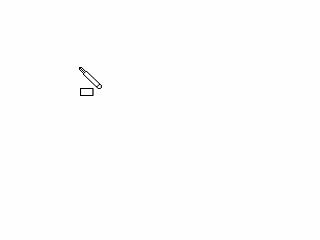

Rectangle



Steps:

1.Pick the first corner of rectangle.

2.Pick the other corner of rectangle


Fillet Rectangle



Steps:

       1.Pick the first corner of Fillet rectangle.

      2.Pick the other corner of Fillet rectangle

      3.Type the radius of Fillet rectangle


Chamfer Rectangle


Steps:

       1.Pick the first corner of Chamfer rectangle.

      2.Pick the other corner of Chamfer rectangle

      3.Type the distance of Chamfer rectangle
