Measuring Tools

       Such functions as Distance measure,Angle measure, Perimeter measure, Area measure are available in Ucancam.

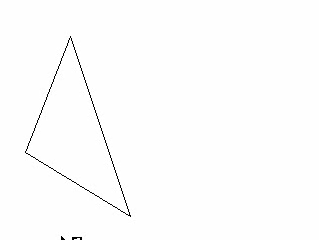

 Measure distance


       Command:

       MenuHelp > Measure distance】                      Standard Bar                   Shortcut: Alt + 1


Steps:

1. ClickMenu 【Help > Measure geometric properties】

2. The cursor changes into

3. Pick the start point and end point.

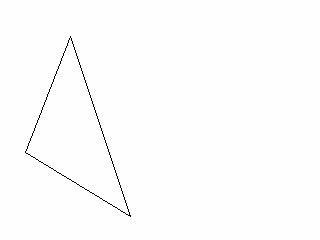

Measure angle


Command:

Menu 【Help > Measure angle】                    Standard Bar              Shortcut: Alt + 2


Steps:

        1. Click Menu【Help > Measure angle】.

        2. The cursor changes into

        3. Pick point and two sides.

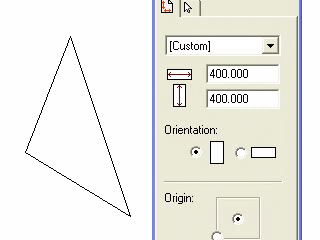

 Measure geometric properties


       Command:

MenuHelp > Measure geometric properties】               Shortcut: Alt + 3


Steps:

1. ClickMenuHelp > Measure geometric properties.

2. The cursor changes into.

3. Pick the object.
