Straight Texture





Bamboo strip                                       Straight wave

---

Command:

         Menu【Wave Board > Straight Texture】

---







       Steps：

       1. Click Menu【Wave Board > Straight Texture】.

       2. Set the parameters, click OK button.

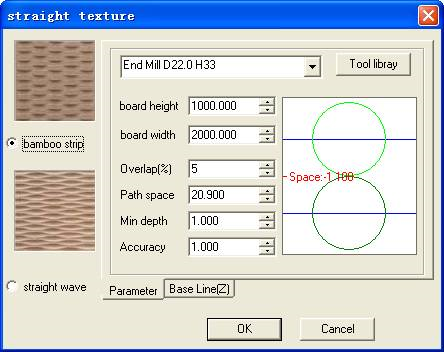

       Parameters:

       Board height: the height of the board to be processed

       Board width: the width of the board to be processed

       Overlap: the proportion of the overlapped Toolpath to the last one

       Path space: the space between each Toolpath

       Min depth: the min depth the tool goes into the board

       Accuracy: the accuracy of the texture. The accuracy is better when the setting is lower, and the time needed for calculating is longer.

       Notes: Overlap and the path space are the same. So you need to just set one of them when creating the Toolpath .

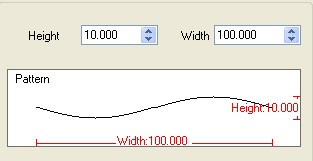

       Baseline setting





      Height: the height of the z axis curve that is the depth of the tool going into the material.

      Height = min depth + wave height

      Width: the width of z axis curve
