Separate a Toolpath into several smaller portions, after machining, you can combine the portions together to form a complete one. Resolved the work area of your machine is not big enough.
Menu【Toolpath > Toolpath Panel】
Steps：
1. Select the Toolpath.
2. ClickMenu【Toolpath > Toolpath Panel】.
3. Set the parameters, click OK button.
Parameters:

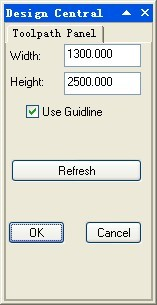

Width: the width of each independent Toolpath after applying Toolpath panel.
Height: the height of each independent Toolpath after applying Toolpath panel.
Use Guidline: use the guideline to separate a Toolpath.
Refresh: to reset the above parameters.
Notes: you should put the object in the drawing window (the grey rectangular box); otherwise, the function is invalid.
