Chamfer Surface

Places a ruled surface as a bevel between two surface edges.

      Command:

      Menu【Surface > Chamfer Surface】

Steps:

1. Click Menu【Surface > Chamfer Surface】.

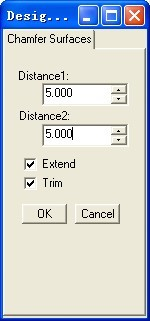

2. Set the distance1 and distance2.

3. Select the first surface

4. Select the second surface.

Parameters:

Distance: The distance from the intersection of the surfaces to the edge of the chamfer.

Extend: Extends the chamfer surface as far as it can along surface.

Trim: Trims the original surfaces back to their intersections with the chamfer surface.
