Rotary Axis

       Command:

       Menu【Toolpath > Rotary Axis…】

---

      1. select model，align the rotary axis of model with X axis, and align the left side center of mode with origin point(0,0,0)。

      2.select the menu 【Toolpath > Rotary Axis…】

      3.Set the parameters, click OK button

.

       Parameter：

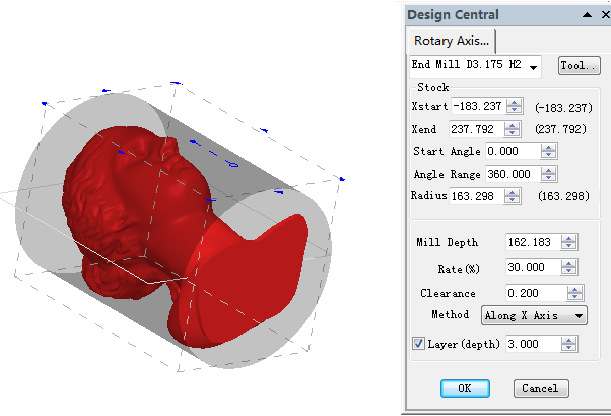

       Stock：it is a gray cylinder，modify the follow data, change the size of stock.

       1.X range:

         X Start: default  is minimum x of model.

         X End:default  is maximum x of model.

      2.Angle range： the angle around x axis. Z axis direction is 0 degree , -Y axis direction is 90 degree，-Z axis direction is 180 degree，Y axis is 270 degree。

         Start angle：-360—360。

         Angle Range：-360—360。

      3.Radius，the cylinder radius，it is applied in rough mill (Layer mill)。default is maximum radius of model. Mill Parameter ：

        1.Mill depth：from the top suface to x axis。

        2.Rate(%)：Tool overlap Rate.

        3.Clearance：you can set surface remain which is the shortest distance between the original surface and surface after carving.

        4.Method：Rotary Along Line And Rotary around X axis。

         Rotary Along Line



 Rotary around X axis







       5.Layer（Layer depth）：Layer mill,it is rough mill for model.
