Finish Emit

Finish emit is used for machinning circularly symmetric shape of the object,.

---

       Command:

Menu【Toolpath > Surface Finish > Finish Emit】

---

Steps:

1. Select  surface.

2. ClickMenu【Toolpath > Surface Finish > Finish Emit】.

      3. Set the parameters, click OK button.

      4. Pick the center of emit,generatethe toolpath.

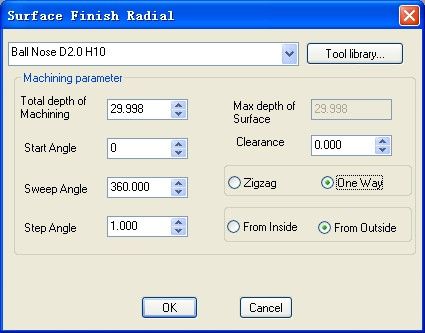

Parameters:

Total depth of Machining: the actual total depth of machining required.

Max depth of Surface: the max depth generated automatically

Start Angle: set the position of start angle.

Sweep Angle: set the value of sweep angle area.

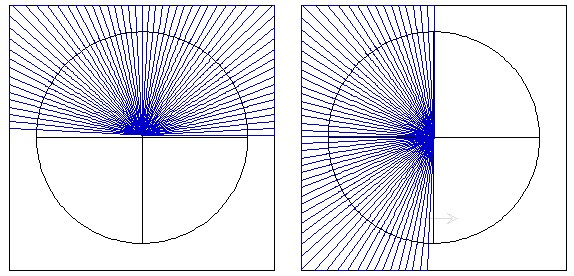

    start angle is 0, sweep angle is 180         start angle is 90, sweep angle is 180

Step angle: the angle of two neighboring lines(the smaller, the more precise).

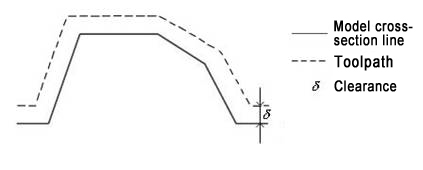

Clearance: you can set surface remain which is the shortest distance between the original surface and surface after carving.

Zigzag: the machining direction is from inside->outside->inside.

One Way: the machining direction, you can select “From Inside” or “From Outside”.

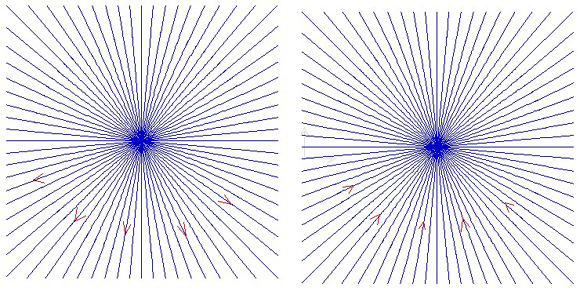

                   From Inside                                             From Outside
