Surface Rough Parallel



---

        Command:

Menu【Toolpath > Surface Rough > Rough parallel】

---

Steps:

1. Select  surface.

2. Menu【Toolpath > Surface Rough > Rough parallel】

      3. Set the parameters, click OK button.

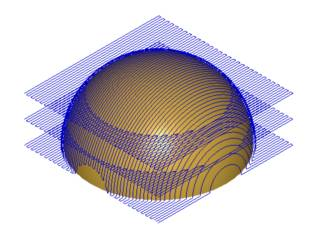

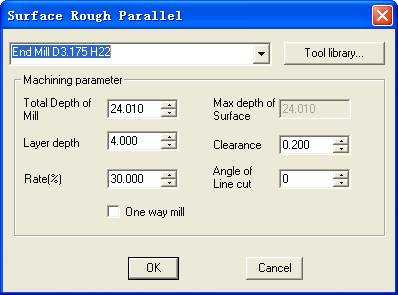

Parameters:

Total depth of Machining: the actual total depth of machining required ;

Max depth of Surface: the max depth of surface is to machine.

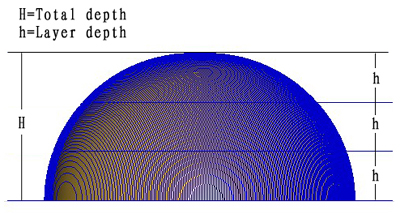

Layer depth: depth of each layer.

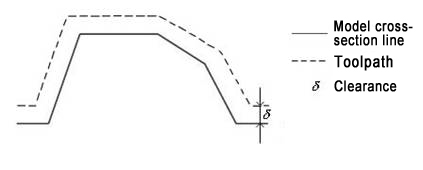

Clearance: you can set surface remain which is the shortest distance between the original surface and surface after carving.

Rate:is the ratio of the width of the tool bottom blade to the width of the last tool path.

Angle of Line out: is the angle formed by horizontal direction and the tool when it moving on material.

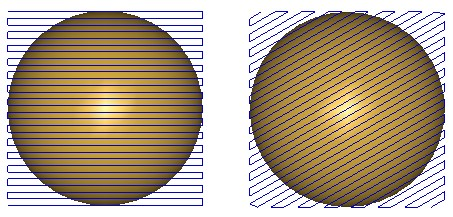

               Angle 0                                        Angle 30

On way mill: Machining in one direction.

You also can machine the region in boundary curve.

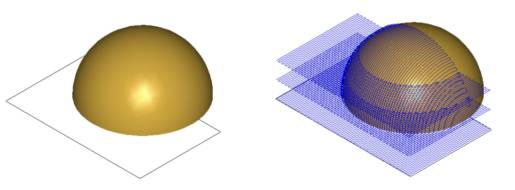

E.g. select sphere and rectangle and click【Toolpath > Surface Rough > Rough parallel】,after setting parameters, press OK, the toolpath is shown. The region in rectangle is machined.
