Project Toolpath
Project the toolpath on the surface.
Command:
Menu【Toolpath > Surface Finish > Project】
Steps:
1. Finish mill the ellipsoid.
2. Make Area clearance for the sign to generate a toolpath.
3. Select the toolpath generated and the ellipsoid, then for align on center.
4. ClickMenu【Toolpath > Surface Finish > Project】.
5. Set the parameters, click OK button.
Parameters:

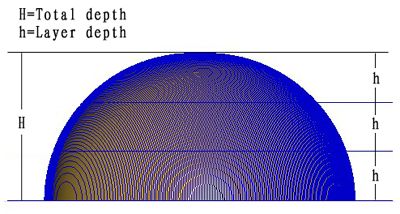

Total depth: Depth of projected toolpath into the surface.
Layer count: the number of layer, the machining is done layer by layer on the material.
Layer depth: the depth pre layer.
Keep original depth: keep original depth, the depth generated by area clearance(or other machining) will be kept, thus Total depth will deepen the toolpath’s depth .
