Combine Mode
There are five options for this: Add,Subtract,Merge High and Merge Low, Replace.
These determine how the subsequent relief is combined with the previous one, for instance whether it sits on top of the original shape or blends into it.
When create relief or surface in ucancam, the default combine mode is Add.
Command:
Menu【Relief > Combine Mode】
The five options and their specific effects are described on the following

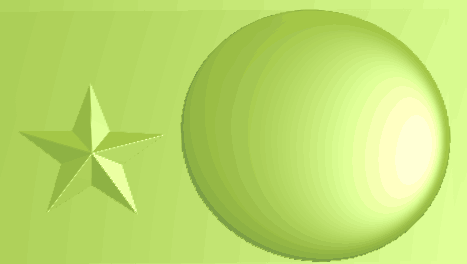

there are 2 reliefs: star and flat ball

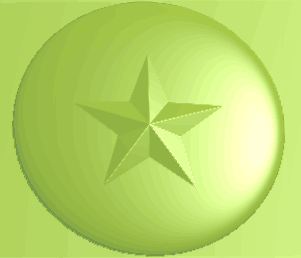

Add: to create a raised relief

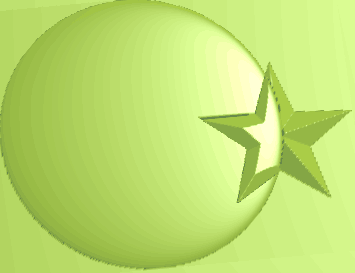

Subtract: to create new recessed reliefs

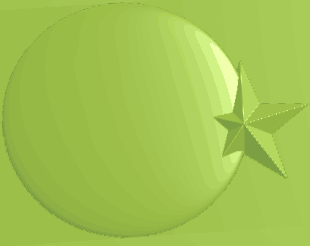

Merge High: keep the highest

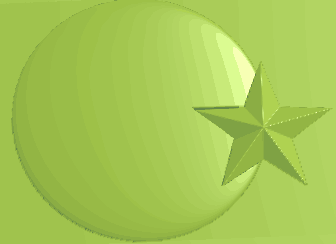

Merge Low: keep the lowest
Replace: new relief replace the previous
