Profile Relief


           Command:

           Menu【Relief > Profile Relief】




          Steps

         1.Select an closed vectors or text.

         2.ClickMenu【Relief > Profile Relief】.

         3.Pick the Profile Curve.

         4. Set the parameters.

         5.Click OK button.

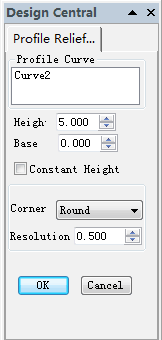

         Parameter:

        profile curve: this curve must be open and has to be incremental in the x Axis.

        Height:max height of reilief section.

        Base:the height of creating vertical sides on the portion of the relief.

        Option:

        Constant:all the height of section is same.
