Image AM Machining

        Image AM machining is to engrave the object after the image is converted into grayscale image. It is to make the distance between the dots the same while the depth of the dots are different.



---

      Command:

Menu【Toolpath > Image  Machining >  Image AM Machining】                     Toolpath  Bar

---





        Steps：

        1.Select the objects .

  2. ClickMenu 【Toolpath > Image  Machining >  Image AM Machining】.

        3 Set the parameters, Click OK button.

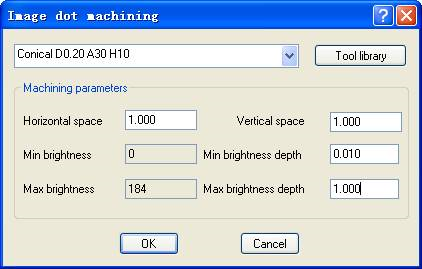

Parameters：

1)Horizontal space: the distance between two points in the horizontal direction

2)Vertical  space: the distance between two points in the vertical direction

3)Min brightness depth: the depth in max grayscale.

4)Max brightness depth: the depth in min grayscale.
