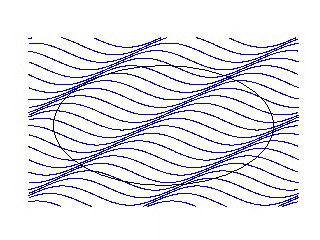

Trim by Boundary
to trim the draft, text, toolpath along the picked boundary.
Menu【Modify > Trim by Boundary】
Steps:
1.Select th draft, text or toolpath.
2.Click MenuModify > Trim by Boundary.
3.Pick the fraft or text as the boundary.

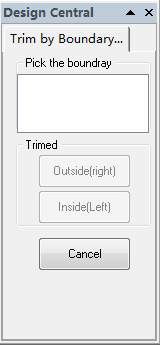

4.Option: to trim off the inside or outside of boundary.
5.Click “OK”.
